Electrochlorinator

HydroPure Electrochlorinator

On-site sodium hypochlorite generation with automatic dosing

HydroPure uses salt, water and electricity to support reliable water disinfection without routine dependency on transported chlorine chemicals. A brine solution passes through an electrolytic cell, direct current triggers electrolysis and the generated sodium hypochlorite is stored and dosed into the water system through dosing pumps.

HydroPure Electrochlorinator product visual
HydroPure Electrochlorinator supporting product image 1

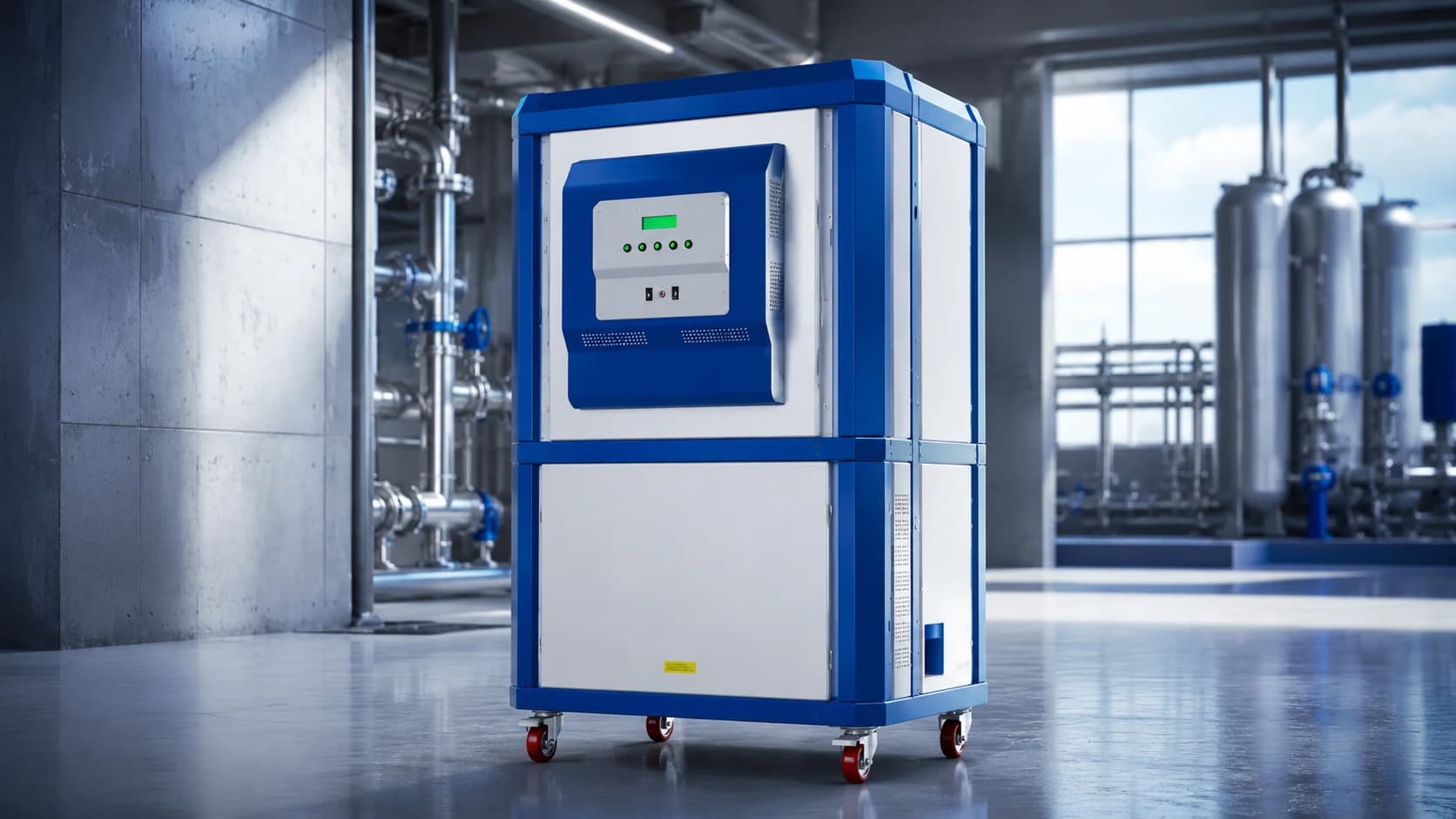

HydroPure Electrochlorinator supporting product image 2

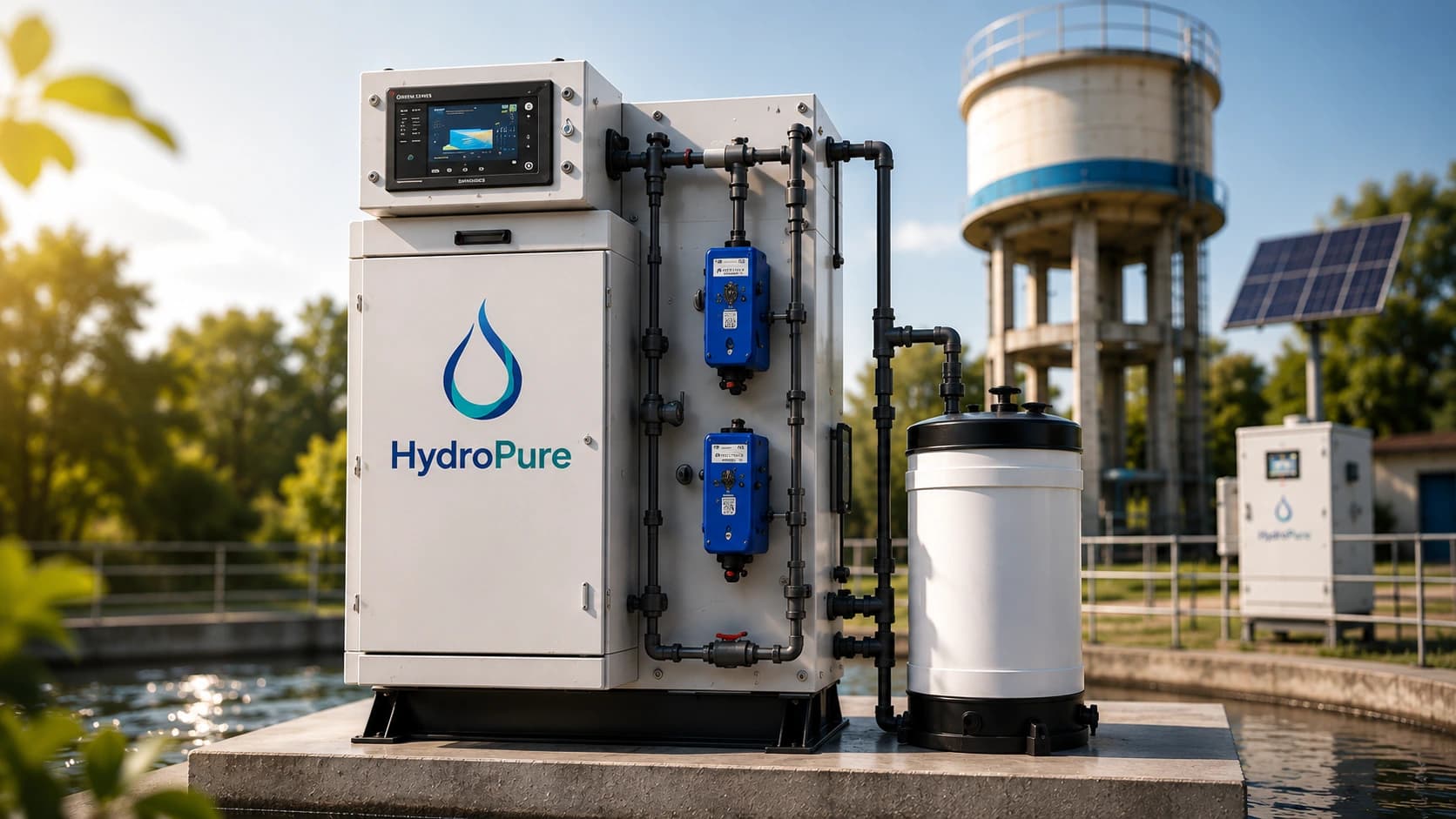

HydroPure Electrochlorinator supporting product image 3

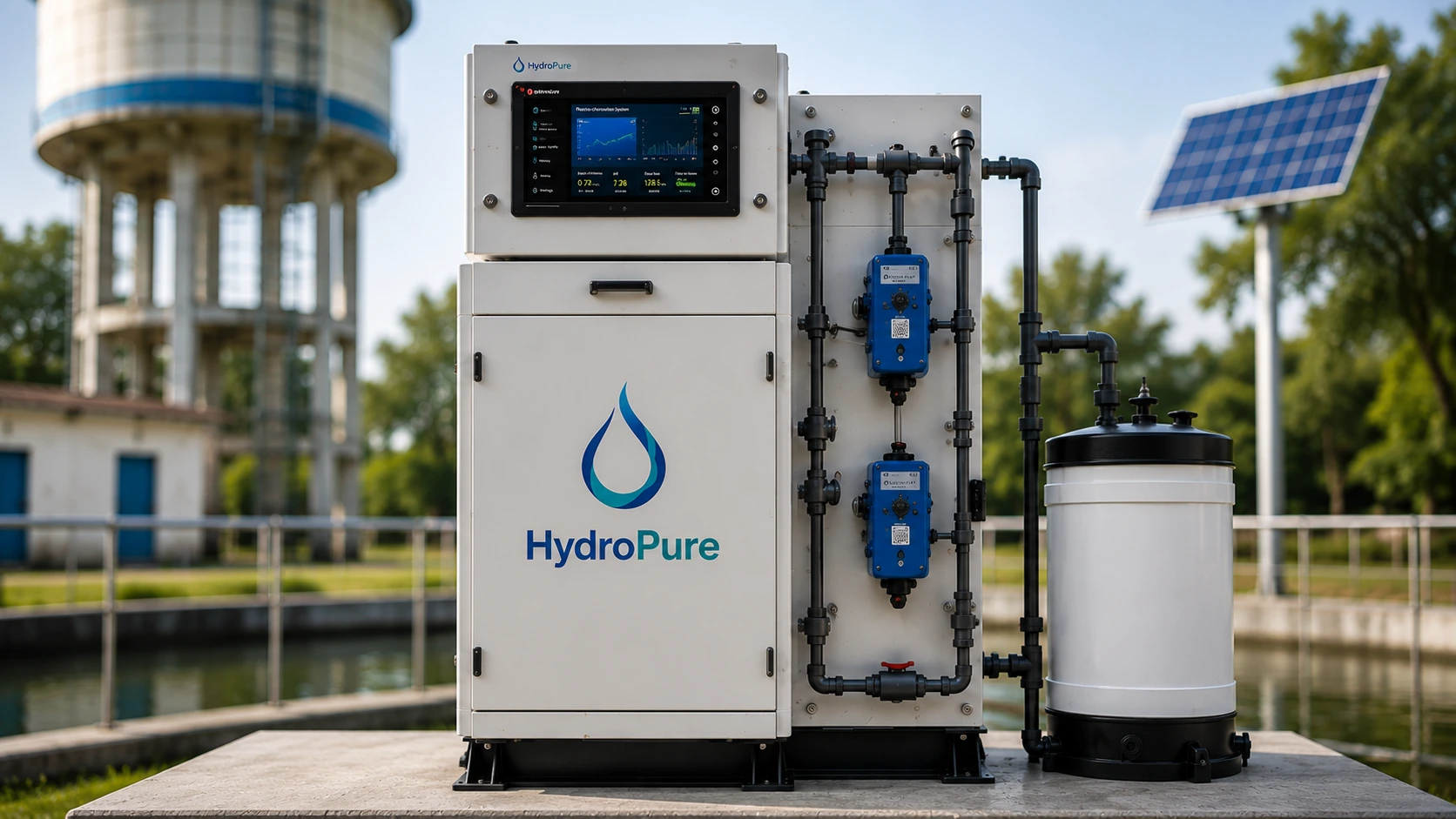

HydroPure Electrochlorinator supporting product image 4
HydroPure Electrochlorinator supporting product image 5

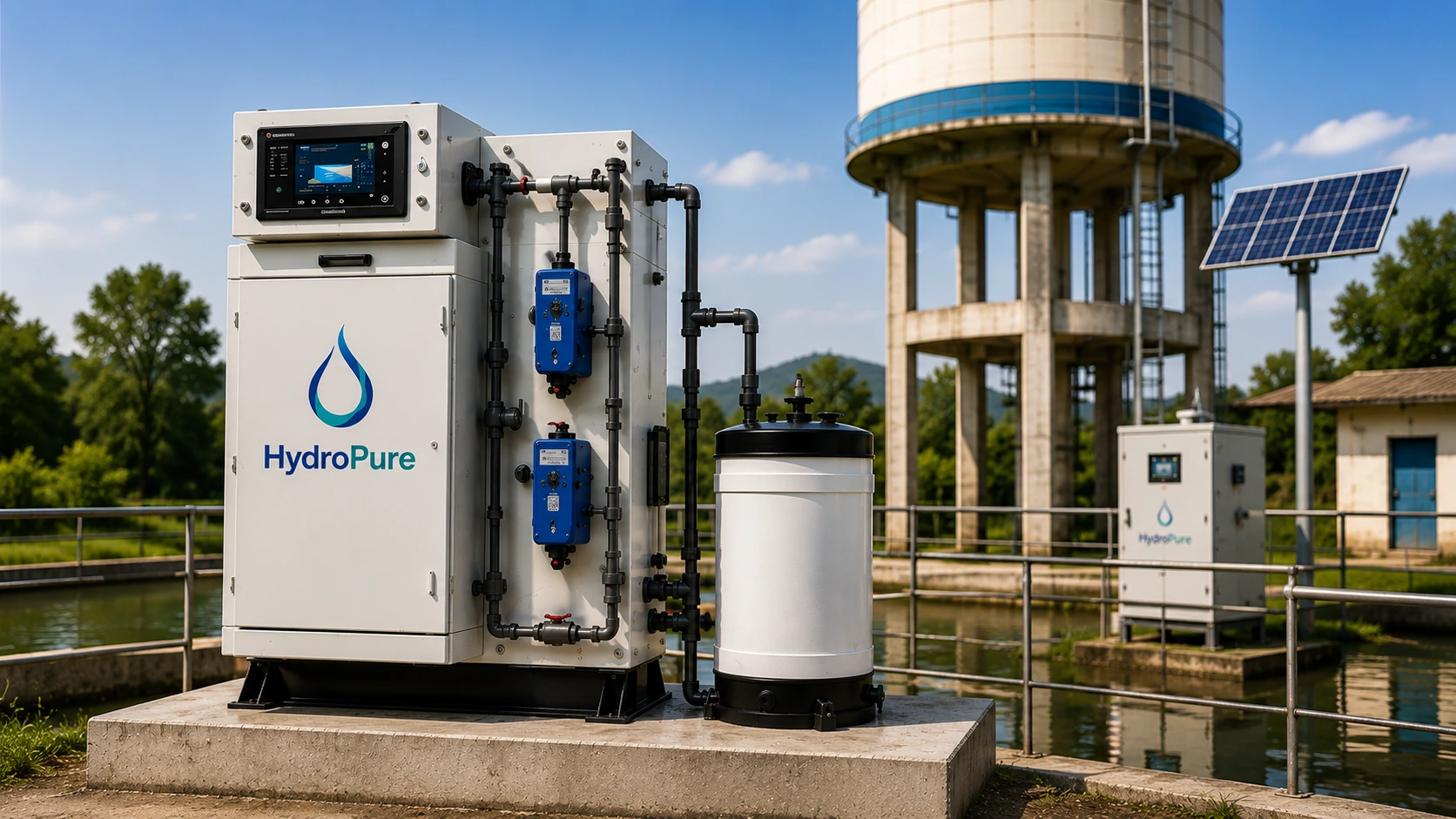

HydroPure Electrochlorinator supporting product image 6

Key features

  • On-site chlorine generation
  • Fully automated operation
  • Self-cleaning electrolyser
  • Precision dosing technology
  • Online chlorine analyzer
  • PLC and SCADA integration
  • IoT-enabled monitoring
  • Solar-compatible operation
  • Compact modular design

Parameters supported

  • HP-100: small village tanks, compact institutions and low-demand sites
  • HP-200: medium-demand sites needing higher chlorine output
  • HP-500: larger village, residential and institutional applications
  • HP-1000: high-volume municipal or campus-level water systems
  • HP-2000: large water-supply schemes and multi-site infrastructure projects

Scope of supply

  • Electrolyser cell, chlorine reaction tank and chlorine storage tank
  • Flowmeter, dosing pumps, level sensors and valves
  • Softener unit with brine tank
  • Microcontroller control panel and IoT module
  • Web application for remote performance monitoring

Commissioning workflow

  • Installation and commissioning of EC system
  • Testing available chlorine after commissioning
  • Operator or Gram Panchayat representative training
  • Comprehensive maintenance planning for EC systems

Chlorination context

Source decks compare gas chlorine, bleaching powder, sodium hypochlorite cans and smart electrochlorination by strength, handling, safety and operating cost. Use exact cost models only after site-specific validation.

HydroPure model capacity range

Catalog values below are based on 16 hours runtime. The system is described as capable of continuous 24 hour operation.

ModelDaily chlorine production (gms)Water treated (liters/day)
HP-1001001,00,000
HP-2002002,00,000
HP-5005005,00,000
HP-1000100010,00,000
HP-2000200020,00,000

Applications

Village tanksMunicipal supplyResidential communitiesHealthcare facilitiesHotels and swimming poolsFood and beverage unitsCooling water systemsWastewater treatment

FAQs

What does HydroPure do?

HydroPure is an IoT-enabled electrochlorinator that generates sodium hypochlorite on site using salt, water and electricity, then supports automatic dosing and remote monitoring.

Which products are part of the Hydroscope ecosystem?

HydroPure handles on-site disinfection, HydroSense measures water-quality parameters and HydroSure gives teams live dashboards, alerts, reports and multi-site visibility.

Can Hydroscope support rural and off-grid sites?

Yes. The HydroPure content positions the system for village overhead tanks, rural schemes, solar-compatible operation, low maintenance and remote monitoring.

How is chlorine produced without storing hazardous chemicals?

The electrolyzer passes current through a brine solution to generate 0.6%-0.8% sodium hypochlorite on demand. Because the disinfectant is made where it is dosed, there is no chlorine gas cylinder or bleach stock to transport, store or handle.

What does a village tank installation involve?

A skid-mounted HydroPure unit sits beside the tank with a brine tank, an injection line into the outgoing main and the sensing layer. The units are plug and play, solar compatible and sized to the tank, so most sites need no civil rework.

How much maintenance does the system need?

The self-cleaning electrolyzer keeps scaling down and extends electrode life, so routine attention is mostly refilling salt and periodic checks. Device health and faults surface as dashboard alerts rather than waiting for a site visit.

What can an operator see on the dashboard?

Residual chlorine, water usage, flow, dosing status and device health for every connected tank, plus warnings, attention alerts, downloadable reports and multi-site visibility from one screen.

Which HydroPure model matches our daily water volume?

The range runs from HP-100 at 100 g/day, which covers roughly 1,00,000 litres per day, up to HP-2000 at 2000 g/day for about 20,00,000 litres per day. Those figures assume a 16-hour runtime, though the system can run continuously for 24 hours.
